278. THE Eb MAJOR OR C MINOR 4-DOUBLE STRINGS GUITAR


This variation of the guitar is with double strings. Nevertheless none of the double strings are of the same frequency or pitch but one or two octaves difference. The reason that it is  so is that the slight deviation from the original tuning during playing (especially when tis t many hours playing) is not creating an irritating  dissonance. The one o two octaves difference guarantee  that such deviations are  middle and do not created acute dissonance. In addition the innovation of two -octaves difference in the 2 lower pitch courses creates a very sweet sound.

Further innovation is  that the tuning is not like the 4 higher double strings,  say of a 12-string guitar, but as the harmonic guitar in post 90. In other words alternation of minor and major thirds, exactly as in  diatonic scale , that create chord triads. This tuning is an open tuning.

In detail the tuning is

C2C4-Eb2Eb4-G2G3-Bb2Bb3.

Thus it is an open Cm7

So  this guitar has lower note the C2 as the Cello and some Arabian Uds.


The choice of the scale Eb major (or C minor) as privileged scale is so as to fit well with the lower registry of the Boehm clarinet in Bb, which nevertheless at the lower registry sounds in Eb.

Because the guitar is tuned one major 3rd lower with the same strings of a standard guitar, the pressing of the strings in the frets is softer, that a standard 12-string guitar. Furthermore  the impedance of the vibrations is lower as in the saz which is usually longer, but of low string tension.

As the Eb diatonic scale has only one flat difference from the Bb diatonic scale, this guitar is accompanies  preferably Jazz music that utilizes , trumpet or cornet in Bb, Saxophones in Bb and clarinets in Bb. But such instruments are also used in folk music of various cultures (e.g. Greek folk music) therefore is suitable for such music too.

This tuning is optimal in the sense that it has the maximum number per frets (maximum density) of triad-chords (3-strings chords, major , minor , diminished augmented ) .

The lower 3-strings give naturally sequence of  triad-chords of the Aeolian mode (Cm) of the  Eb and the higher 3-strings naturally sequence of triad chords of the Ionian (major) mode.



In the next pictures is seen, the body of a  12-string guitar which has been converted to a 4-double strings 8-string guitar, with the above tuning.

A more natural solution would be to utilize the bodies of 4-double strings tenor guitars (used mainly in jazz as arc-top tenor guitars) and tune it as above








Monday, September 9, 2019

276. ALTERNATING HAPPINESS AND SADNESS IN SLOW MELODIC IMPROVISATION BY ALTERNATING MAJOR MINOR INTERVALS OF 3RD. THE ANCIENT 2-VOICES HARMONY:CELTIC MINOR AND MAJOR 6-NOTES SCALES

See alo post 208

MELODIC TRIADS: SOLO COMPOSITION AND IMPROVISATIONS BASED ON ALTERNATING (MELODIC TRIADS AS  VECTOR) INTERVALS OF MAJOR(HAPPY) /MINOR(SAD) 3RD:RECIPES OF HAPPINESS AND SADNESS

THE 2-VOICES HARMONY:

HERE IS EXAMPLE OF SUCH  IMPROVISATION

https://www.youtube.com/watch?v=Hxym5yTmdC8&t=1420s

When improvising is a solo in an almost random way in a diatonic or more general scale but who tries to listen also to the inner emotions, a good path is to walk by intervals of 3rd and alternate  major (4 semitones happiness ) and minor (3 semitones, sadness ) exactly as it happens in a diatonic scale, as this also creates an underlying  major or minor chord. If on the other hand it is two consecutive intervals of minor 3rd it would create an underlying diminished chord and if consecutive major intervals of 3rd an augmented chords (that occur in the harmonic and double harmonic minor) , both more  rare compared to major and minor chords.

In a diatonic scale only in one place two consecutive intervals of 3rd are minor.

This type of walking intervals or vector-intervals (=intervals with all intermediate notes in a diatonic scale, see also post 183 1nd 159) In other words intervals closed together with all the intermediate notes of a diatonic scale that it belongs to it we have called previous post as vector-chord improvisation as contrasted to arpeggio improvisations.

Therefore instead of the concept of scale (and as here we do not assume a chord progression or scale of chords) we have the concept of TRIAD  as vector interval of 3rd MINOR (SAD) OR MAJOR (HAPPY) By composing triads we get various types of scales known or unknown but with recognizable hidden harmony.
OF COURSE WE MAY VERY WELL WALK BY TRIADS IN A DIATONIC SCALE GIVING SEQUENCES OF MAJOR (HAPPINESS) AND MINORS (SADNESS) 3RDS IN THE PROPORTION AND COMBINATION WE WANT.
KNOWING THIS IN MAJOR-MINOR 3RDS WE ALWAYS KNOW WHERE TO FIND HAPPINESS AND MORE HAPPINESS AND SADNESS AND MORE SADNESS.


Thus these "recipes" of happiness (+) and sadness(-) would look like thsi

+++--+----++----+-+- etc

BECAUSE THE COMPLEXITY OF THIS 2-VOICES HARMONY IS LOW, IT IS SMORE CLEAR THAT ITS SIMPLICITY IS A LEVERAGE ONLY TO THE INNER FLOW OF NEW SEQUENCES OF EMOTIONS. SO IT IS MORE THAN  50% INNER FLOW AND LESS THAN 50% EXTERNAL FLOW OF MUSICAL SOUNDS.


THE HAPPY ENHARMONIC CELTIC MAJOR  6-NOTES SCALE

In a diatonic scale there are 3 intervals of major 3rd 1-3, 4-6 , 5-7 (e.g. in C major C-E, F-A , G-B) and 4 minor 2-4, 3-5, 6-1, 7-2. If we want a  scale with more happy intervals of 3rd (major) than sad (minor) then should start with the 3 major 3rds 1-3, 4-6 , 5-7, and create the 6-notes enharmonic generation scale

1-3-4-5-6-7-1 (e.g. in C major C-E-F-G-A-B-C) with interval structure

4-1-2-2-2-1

WE may call it the happy enharmonic CELTIC MAJOR 6-notes scale

Also in Japanese folk music are used a few enharmonic gendre 5-notes scales with more intervals of major 3rd than minor 3rd.

There is  of course the Celtic Minor scale which can be derived by the 3 minor 3rd intervals of the diatonic scale 2-4, 3-5, 6-1 or in C major

C-D-E-F-G-A-C with interval structure 2-2-1-2-2-3 (see also post  204 )



Inharmony a chord is a triad, and triads of chords define usually in  a minimal way the harmony of a scale. Similarly here in melodic composition, the basic composition element is a melodic triad as above, and and triads of melodic triads define somehow an scale of an octave.

The usual  triads  are the next 3 in semitones

1-2
2-1
2-2
  giving in total  semitones 3 or 4 or an interval of  3rd




Of course we add wavings by intervals of 2nd and we go up or down according to the alternation of sad and happy changes of the emotions. The major/minor 3rds alternation also corresponds to alternation of sad and happy emotions. We may of course alternate to the solo also triad chords. If we are on string instruments tuned by 5ths, then we can also accompany this solo with the interval of 5th of the two immediately lower strings as a kind of power-5 chord. The melodic themes created in one or two consecutive such (vector) intervals of 3rd can be varied of course with translations, inversions, rotations (including expansions)  and mutations.
Normally two triads are for the first poetic line (8 beats) and two more for the 2nd poetic line (7 syllables).

If we do not walk the intermediate notes of the vector interval of 3rd and we just jump-play it, alternating major minor such intervals of 3rd we are simply in t what we have called in post 94 the melodic corridor, which e.g. how the siku pan-fludes and pan--flutes with double rows of pipes are designed in the folk music of andes.

In composing  melodic themes based on melodic triads we should use also the concept and technique  of  variational  independent base of melodic shapes or melodic seed (see post 106). I other words the melodic themes shapes that are mutually variational independent, in other words neither translation neither , inversion, neither rotation can derive any one of them from the others , and in addition all other melodic themes oft he song can be derived with variations from them.

We should not confuse the melodic triads, which is a concept similar to that of  a scale of notes with the shapes of melodies in a melodic triad (as e.g. in post 100-106).


AGAIN THE BEST INSTRUMENT TO PLAY SUCH IMPROVISATIONS IS THE CELTIC HARP! THE NEXT BEST IS PAN-FLUTES (SAMPONIA) AND SINGLE TUBE WINDS

Friday, September 6, 2019

275. A METHOD OF LEARNING INSTRUMENT PLAYING, IMPROVISATION AND SONG ADOPTIONS-RECOMPOSITIONS BY WHISTLING OR SINGING PARALLEL TO A RECORDED SONG ,


   A METHOD OF LEARNING   INSTRUMENT PLAYING,  IMPROVISATION  AND SONG ADOPTIONS-RECOMPOSITIONS  BY WHISTLING OR SINGING PARALLEL TO A RECORDED SONG ,

HERE IS EXAMPLE OF SUCH A MUSIC

https://www.youtube.com/watch?v=Hxym5yTmdC8&t=1420s

(see also post 128)

Now one could imagine a process in learning an instruments at the same time leaning improvisation For example let us take any one of the instruments below

0) A percussion instrument
1) A Guitar or ukulele
2) A Celtic Harp
3) A Bowed string instrument like Greek Lyra (or fiddle)
4) A diatonic Pan-Flute or a chord or bass harmonica
5) A single tube wind with the fingering system 6+1. E.g.  Irish whistle, flute , or reed instrument like clarinet saxophone , duduk, chalumeau  etc

 The central idea is of course that the versatility of playing a musical instruments is based on the ability to internalize and perceive mentally and emotionally the musical sound  and improvise (mimic, assimilate, innovate) rather than the ability of concentrating separately to technical skill of geometric patterns of playing for the particular instrument And one of the simplest ways to perceive musically harmonically , melodically and chromatically,  all the universe of the 12-notes is the chromatic tonality (as in post 263) (see post 258 that improvisation is at least at 2/3rds an internal feelings and intellect meditation process rather independent from the musical instrument played! The 2/3ds are of course the mental perception of the musical sound and the feelings-emotional  perception of the musical sound, and not the geometric instruments pattern of the musical playing! And one of the simplest ways to perceive musically all the universe of the 12-notes is the chromatic tonality (as in post 263) ).

Here in the next video, the guitar teacher explains why it is simpler for the human nervous system to concentrate on the mental and emotional perception of the musical sound rather than on  the geometric patterns of playing the particular instrument.

https://www.youtube.com/watch?v=iacQvKMSx6A


So a daily or weekly process and practice could be nowadays as follows:

1) Chose in youtube a nice and happy song that you would like to listen and play. Better be happy rather than sad , as such a learning should raise our bodily frequency and should be laso a learning of how to be happy within the good joy (not the bad joy). E.g. it might be an early jazz song like those that the  carling family are playing and enjoying. If we do not want to start with a known song in youtube, he may start by playing and recording in Audacity a rhythm by a percussion instrument, and then use this as a base.

2) Derive an mp3 file from the youtube-video, and analyze it with the free software Audacity (or a similar) to verify by its chords that it is a chromatic tonality music song (see post 263 )

3) Try singing its melody (improvisationally) or whistle  (improvisationally) its melody. THIS IS PROBABLY THE MOST IMPORTANT STEP IN LEARNING ALL THE INSTRUMENTS SIMULTANEOUSLY.



3.2) COMPOSITE PRACTICE OF IMPROVISATION , REMIX -ADAPTATION OF A SONG AND INSTRUMENT PLAYING.
This ability can be activated as follows: At first listen for some weeks to nice songs preferably Jazz songs and familiarize with their melodies harmonies and techniques. Start with early jazz which is simpler and utilizes the triads of chords 1-4-5 or 1-2-5 etc. The preliminary stage of education of the subconscious determines also the speed of creations of emotions and feelings when improvising. It is important that the speed of actual musical improvisation is not faster than the speed of creation and shaping of the emotions and feelings. In different persons it is different speed.


3.2.1) Besides trying to whistle the melody , it can be tried to whistle a simplicial coutermelody of the melody (see post 289)

Listen them with one only earphone, leaving the other ear open and sing or whistle parallel to the melodies of the song, inspired or stimulated on the occasion of the written and listened song. The whistling improvisation may nevertheless deviate not only from the listened melodies but also from the listened chords and harmony, if the feelings require so. This is an important factor of the improvisation as melodic or harmonic "errors" in whistling a melody most often turn out to be improvements of the melody based on our own memories of nice melodies and inclinations in the feelings. General rules that two parallel melodies fit harmonically together as described in post  128, require only that the number of intervals of 3rd, 4th 5th and 8th are more than 50% compared to intervals of 2nds. In addition alternating with this whistling or singing we may  play on a  desired instrument similar melodies.
 We may go as far as utilizing this method as a method of creating adoptions or remix of a  song. This requires that the improvised melody will fit only to a percentage x%<50% with the parallel sounding song and the rest 100%-x% the melody , rhythm and chords will not fit and will be the innivated adoption of the song (according to our inner emotional impulses and habits) . Of course the overall  result of the underlying song and its adoptoion will not be audible with good feelings as they will be incompatible , but the intention is to be inspired in real time by the song and create in real time an adoption of it. Finally oly the adioption will be presented not the parallel initialinspiration.
Depending on the acquired skill on the instrument, the improvisation may be poorer or same rich as the whistling. Furthemore instead of only listening to the song, if opened in a software like  Audacity where its chords can be found and displayed below the waveform, we see also the underlying chords and we learn to associate the whistling or instrument playing ofthe melodies with the underlying chord progression. We keep doing it not only so  as to get pleasure but also to improve improvisation and playing skill on the prefered instruments.
The speed of improvisation must not be faster that the speed of creation of emotions prior or after the musical sound.

The speed of conducting the improvisation may be increased if while we improvise we pretend that there is a mandarin (fruit) flying a few centimeters above the top of our head and we look and listen and conduct the improvisation from that point in air or aether rather than from our hands or mouth.

3.2.2) We may also record the whistling in the computer, while we listen in one only earphone and in one ear, the parallel song from the mobile or another computer. This may create an entereily new song and new melody and even different chord progression inspired and stimulated by the initial parallel song.  That is why a more likable way of the whistling melody should not be considred as a "mistake" but as a more likable melody of a new song, inspired from the initial.

4) Start with the  known instrument or easiest instrument that here we  will assume that it is the guitar or ukulele or a wind etc. Play its chords rhythmically and improvise melodically whistling or singing simultaneously as in 3.1).

5)  Make sure that if e.g. you play the Celtic harp (which is a diatonic instrument ) is tuned at the right central diatonic scale of the song Usually Bb, or F , or G , or C etc Play the chord and improvise the melody with the right hand . Alternate chords and melody with the right hand. The melodic improvisation could be very close to the whistling improvisation. Use the left hand for an isocratic  bass line based on simple 2-voices harmony  (usually an interval of 3rd). It could even be the power-5 chord ofthe scale. Or it could be just one note per pentachord or tetrachord at the bass area.

6) If you feel comfortable and satisfied with the result,  record the improvisational playing separately each one upon the previous in Audacity to produce a sound file. Elaborate a bit and on the recording and maybe correct some volume, timing or even pitch imperfections. The idea is to be excellent in creativity , learning and enjoyment rather  in formal perfection. Then  publish it in youtube or facebook in a group of well meaning favourable friends, if you feel so, or simple keep it in your databases.


10) The above process 3)- 6) can one play by not starting with a known song in youtube, but by free improvisation directly from our emotional subconscious.
If we do not want to start with a known song in youtube, he may start by playing and recording in Audacity a rhythm by a percussion instrument, and then use this as a base.

See alo post 208

A practice that would implement also instruments is the next

(See also post 271 about learning many instruments simulteneously utilizing simplicial submelody improvisation system )

1) Download the song as an mp3 file , then open it in Audacity, and utilize its function of finding the chords.
2) We look at the chord progression and try to identify the main  diatonic scale , from which it may deviate chtomatically.
3) Then we choose the appropriate instrument that may diatonic at this scale or even chromatic. It may be a wind instrument like harmonica, flute, clariphone sax etc or it may be a bowed instrument like violin , metric-lyra celo-lyra (see post 264) or other stings instruments like cuatro, guitar, bouzouki, mandolin, mandola, etc.
4) At first we whistle the simplicial counter-melody while the song is  playing.
5) Then we repeat the whistling simplicial counter-melody with the chosen instrument

6) If we are multi-intrument player, we rotate the instruments from the easiest to the more demanding (e.g. harmonica, then celtic harp, then chinese panflute, then marked scale cuatro, then fretted-lyra , then straight flute,  then clariphone or sax etc)  playing similar simplicial counter-melodies for this song. If we do that we try to identify ourself  the with the simplicial counter-melody and consider that we actually we laer a simplicial counter-melody for thsi song rtaher than that we learn  the particular instrument that we play). See also post 271.

MELODIC TRIADS: SOLO COMPOSITION AND IMPROVISATIONS BASED ON ALTERNATING (MELODIC TRIADS AS  VECTOR) INTERVALS OF MAJOR(HAPPY) /MINOR(SAD) 3RD:RECIPES OF HAPPINESS AND SADNESS

When improvising is a solo in an almost random way but which tries to listen also to the inner emotions, a good path is to walk by intervals of 2nd small distances of total length an interval of 3rd and alternate  major (4 semitones happiness ) and minor (3 semitones, sadness ) exactly as it happens in a diatonic scale, as this also creates an underlying  major or minor chord. If on the other hand it is two consecutive intervals of minor 3rd it would create an underlying diminished chord and if consecutive major intervals of 3rd an augmented chords (that occur in the harmonic and double harmonic minor) , both more  rare compared to major and minor chords.
This does not mean that we create a specific diatonic scale or mode of it but rather pieces of diatonic scales, therefore it is more probable that we are in a bebop scale (union of two diatonic scales).

This type of walking vector-intervals (see also post 183 1nd 159) in other words intervals closed together with all the intermediate notes of diatonic scale that it belongs to it we have called previous post as vector-chord improvisation as contrasted to arpeggio improvisations.

Therefore instead of the concept of scale (and as here we do not assume a chord progression or scale of chords) we have the concept of TRIAD  as vector interval of 3rd MINOR (SAD) OR MAJOR (HAPPY) By composing triads we get various types of scales known or unknown but with recognizable hidden harmony.
OF COURSE WE MAY VERY WELL WALK BY TRIADS A DIATONIC SCALE GIVING SEQUENCES OF MAJOR (HAPPINESS) AND MINORS (SADNESS) 3RDS IN THE PROPORTION AND COMBINATION WE WANT.
KNOWING THIS IN MAJOR-MINOR 3RDS WE ALWAYS KNOW WHERE TO FIND HAPPINESS AND MORE HAPPINESS AND SADNESS AND MORE SADNESS.
Inharmony a chord is a triad, and triads of chords define usually in  a minimal way the harmony of a scale. Similarly here in melodic composition, the basic composition element is a melodic triad as above, and and triads of melodic triads define somehow an scale of an octave.

The usual  triads  are the next 3 in semitones

1-2
2-1
2-2
  giving in total  semitones 3 or 4 or an interval of  3rd




Of course we add wavings by intervals of 2nd and we go up or down according to the alternation of sad and happy changes of the emotions. The major/minor 3rds alternation also corresponds to alternation of sad and happy emotions. We may of course alternate to the solo also triad chords. If we are on string instruments tuned by 5ths, then we can also accompany this solo with the interval of 5th of the two immediately lower strings as a kind of power-5 chord. The melodic themes created in one or two consecutive such (vector) intervals of 3rd can be varied of course with translations, inversions, rotations (including expansions)  and mutations.
Normally two triads are for the first poetic line (8 beats) and two more for the 2nd poetic line (7 syllables).

If we do not walk the intermediate notes of the vector interval of 3rd and we just jump-play it, alternating major minor such intervals of 3rd we are simply in t what we have called in post 94 the melodic corridor, which e.g. how the siku pan-fludes and pan--flutes with double rows of pipes are designed in the folk music of andes.

In composing  melodic themes based on melodic triads we should use also the concept and technique  of  variational  independent base of melodic shapes or melodic seed (see post 106). I other words the melodic themes shapes that are mutually variational independent, in other words neither translation neither , inversion, neither rotation can derive any one of them from the others , and in addition all other melodic themes oft he song can be derived with variations from them.

We should not confuse the melodic triads, which is a concept similar to that of  a scale of notes with the shapes of melodies in a melodic triad (as e.g. in post 100-106).

 The way that an improvisation not based on a played song can be composed is with various methods:

AS IS THE CASE WITH ORGANIZATION STRUCTURES OF VARIOUS ORDERS OF DEPTH LIKE MUSIC AND ITS ORGANIZATION, THE IMPROVISATION CAN BE AT
 THE LOWEST LEVEL: 1) MELODIC ONLY (start with winds, or harp ar guitar , ukulele, with this order see e.g. post 266, 224)
AT A LOW LEVEL : 2) 2-VOICES OR PAIRS OF SIMULTANEOUS NOTES IMPROVISATION , (mainly harp but also guitar, ukulele, E.g. see posts 260 ,82)
AT A MIDDLE LEVEL: 3) CHORDS AND MELODY IMPROVISATION (Harp, or guitar , ukulele, e.g.see post 9 . Of course the closest to happy early Jazz songs is to use triads of major chords and in particular 1-4-5 of the Bb or F major scale, and then extend them possibly with chromatic tonality . See post 263 ).
AND AT A HIGH LEVEL : 4) MORPHOLOGICAL REPETITIONS PATTERNS OF PARTS OF THE PIECE  IMPROVISATION (on any instrument e.g. see post 203, 201)

I believe the most successful order is to start with the chords, and in particular a triad of major chords and in particular 1-4-5 of the Bb or F major scale, and then extend them possibly with chromatic tonality as in  post 263 with minor, diminished and augmented chords but not more than 1/3 of the total time and only if the whistling improvisation suggests it. The next simple idea in improvisational harmony is an harmonic linear progression of major/minor chords by intervals of  4ths. Then improvise fully by singing or whistling melodies on them and pass this whistling gradually to the rest of the instruments.

The improvisation of each instrument with the chosen order, starting from the rhythm of the percussion instrument, is recorded (e.g. in Audacity) , and the next instruments are played at first live with a background from the speakers or earphones (like karaoke) from the previously recorded instruments, and then are recorded also with the rest of the recorded instruments. The final result as an .mp3 or .wav file is it is liable and satisfying is published a group friends or simply kept in nono-publishing data bases.

If he is lucky he might find some friends and try a group improvisation where he is playing in sequence some of the instruments he is learning or practising.

We remind here why in learning simultaneously many instruments it is by far better the improvisation method than reading a musical score.

THE ADVANTAGES OF IMPROVISING A MELODY VERSUS PLAYING A MELODY

PLAYING THE MELODY

DISADVANTAGES: 1) No sufficient space to interpolate  your own feelings parallel to the melody
                                   2) Rigid stereotypic repetition  , that the slightest deviation will cause the                                                feeling of an "error" or "bad sound". This will create fear and will "slauter" the "wings" to add your own "signature" to the melody. It will stop  also and suppress the ability to compose your own melodies.

ADVANTAGES: 1) You do not have to involve much of your emotions and creativity , after learning it it seems easier to repeat it each time and if the melody is played correctly it is expected by the audience to to appreciate it.


IMPROVISING THE MELODY:

ADVANTAGES:1) Plenty of free  space to interpolate  your own feelings parallel to the melody
                                   2) No rigid stereotypic repetition , each time played it is somehow different . The randomness of the decorative notes of the improvisation allows for searching the appropriate melodic center that corresponds to the intended emotion or for gradual correcting till the melodic center of the original melody is found  (in the scale stepwise glissando as default movements) This will create an euphoria of abundance of creativity and will multiply the ability to compose your own melodies in later times.

DISADVANTAGES: 1) It requires listening to your own mood (or the mood of the  audience) when improvising the  melody, and there is always the risk that the current version of the improvisation of the melody is not good enough compared maybe to previous improvisations or that the audience will not appreciate it enough as you appreciate it when your are improvising it.



IN OVER ALL IT IS OBVIOUS THAT IMPROVISING A MELODY IS BY FAR MORE ADVANTAGEOUS THAN JUST PLAYING THE MELODY.


Thursday, September 5, 2019

274. AN "OBVIOUS" IMPROVEMENT TO THE STANDARD DIATONIC AND CHROMATIC TUNING OF THE MOUTH HARMONICA.

AN "OBVIOUS" IMPROVEMENT TO THE STANDARD DIATONIC TUNING OF THE MOUTH HARMONICA.


Harmonica is a marvelous little instrument with nice harmonic sound.
The standard Richter-tuning is specializing in playing the Blues, and the chords I, ii, V.
For  this reason I refused to learn harmonica when I was a student as it was that it was too much specializing in Blues, and I could play in order the melodies only in the middle. Now that I discovered that you can configure your harmonica the way you want I decided to learn harmonica.  There is one only aspect that I do like the Richter tuning: It forces you to play with 2 major chords and one only minor thus forces youtoplay mainly happy music! I realize now that with the Ionian circular tuning the harmonica might have become,  the  most friendly instrument as friendly as the Celtic harp or Chinese panflude (which is with a single flexible blow pipe in the mouth and at the other end a sliding on a driver blowing-device on all tubes, one each time).
But what if we want a  harmonica that is not specializing in any particular type of music? What would be then the optimal tuning? Here we answer this question.


The main advantages of harmonicas are

1) It is small in size, therefore movements required for different notes or chords are small

2) Because each hole has a double function, by blowing or drawing giving possibly two different notes, the movements for the melodies or chord changes are even smaller.

3) For chromatic harmonicas, the sliding lever produces usually 2 more (in total 4) notes for each hole, which makes the movements for melodies rich in notes small.

4) Harmonicas are polyphonic wind instruments. After the suggested optimal tuning for chords but also for melodies below, the sequence of holes of the harmonica gives pairs of notes or triads-chords of notes which makes the underlying harmony of the melodies directly audible with little movements. Intervals of 3rds or 4ths are realized even at successive holes, while intervals of 5ths at holes with only one hole between them. This is not so easy in melodica or accordina.

5) The metal free-reeds have a penetrating but not sol oud and penetrating sound as thew trumpet or saxophone, which makes harmonicas appropriate for practice inside apartments and homes.

6) The techniques of tremolo by the palms and note bendings give special colors to the sound not possible with melodica or accordion.

7) The ability to order custom tunings for manufactured harmonicas is a great advantage compared to other instruments like piano or accordion, where the white keys cannot be changed to any desired diatonic scale.

8) The technique of blowing or drawing in a hole is a rather easy matter, and as the kips and mouth slide on the harmonica we get the feeling of glissando as in violin, but still, the notes are discrete. This allows for an easy and fast finding of the desired note in improvisation.

9) Based on the above the improvisation with harmonicas which combines melodies with chords and simultaneously sounding pairs of notes at intervals of 3rds,  is a rather more direct and easier practice compared to all other instruments.


10) Because  the sliding of the lips by blowing only or drawing only in consecutive holes is easier than alternating blowing and drawing while sliding the lips, the result is that more often we produce improvisational melodies with more 3rds than 2nds which is more melodic and harmonic rather than chromatic, and so the improvisation is harmonically and melodically more beautiful. Of course, this is the same with the double two zamponia panflute but the additional advantage of the harmonica is that because of the small size of the holes we can produce easily chords or simultaneously sounding pairs of notes at intervals of 3rds.





The strong advantage of harmonica is not single notes but pairs of notes or chords, therefore we cannot ignore the very important issue of chord-completeness in a harmonica that can play solo too.

The standard tuning of a diatonic harmonic e.g. G major is the next

12345678910
blowGBDGBDGBDG
drawADFACEFACE
OR IN STEPS OF THE DIATONIC SCALE INDEPENDENT FROM THE ROOT


12345678910
blow1351351351
draw2572467246
In chords by 3 consecutive notes it has the pattern



blowIII
drawViivii

OR



12345678
blow1M

1M

1M
draw5M

2m

7d



We notice some irregularities

1) The blow upper row repeats the root chord G major and the horizontal sequence of intervals is not alternating major-minor 3rds but also a 4th. Thus there is no upper horizontal uniformity of intervals

2) The lower draw row again is not uniform. From the D and right there is an alternation of major-minor intervals, but the first A-D is a 4th and the 6-7 is an interval of 2nd. The sequence repeats

3) Non-uniformity exists also in the vertical intervals, that are mainly 2nds but the 2 and 3 are 3rds

4) Only the chords of the steps of the diatonic scale  1, 5, 2, 7,6 are playable horizontally. The chords 3, 4 are missing.


The logic of why the notes are placed as they are seen seems to be so as to play chords for 3 consecutive notes, while at the same time provide all the notes of the diatonic scale.

Now if we set the requirements that

a) Play as many chords as possible by 3 consecutive notes
b) Provide all the notes of the diatonic scale
c) Make the design as symmetric as possible for intuitive reasons

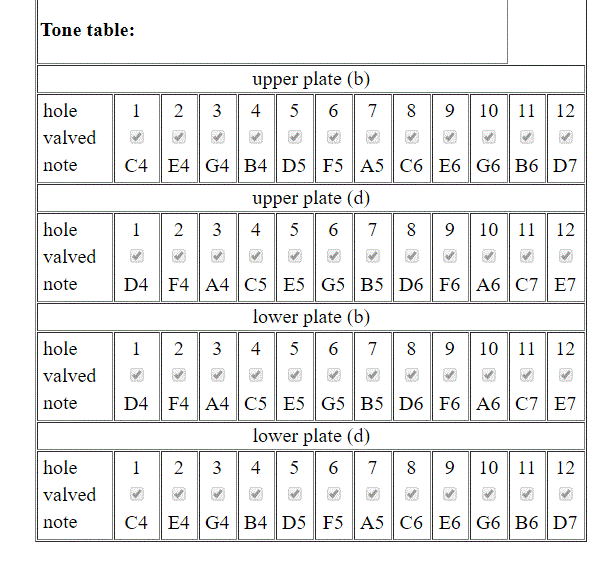

Then the  ionian mode circular tuning is the very well known double row panflute arrangement
(e.g. zamponia panflute)


12345678910
blowGBDF#ACEGBD
drawACEGBDF#ACE

OR


12345678910
blow1357246135
draw2461357246

In chords by 3 consecutive notes it has the pattern




12345678
blowIiiiVviiiiIVviI
drawiiIVviIiiiVviiii

OR


12345678
blow1M3m5M7d2m4M6m1M
draw2m4M6m1M3m5M7d2m


If we want a chord progression with harmonic transitions (in other words by intervals of 5th or 4th, besides 2nds) that involves all 3 major chords of the diatonic scale, with blows only here it is



12345678
blowI
V

IV
I
draw

While if we  want a chord progression with harmonic transitions (in other words by intervals of 5th or 4th, besides 2nds) that involves all 3 minor chords of the diatonic scale, with draws  only here it is


12345678
blow
drawii
vi
iii
vii
Given that blows are easier and longer compared to draws that are more difficult and shorter, it is more likely that improvising with such a tuning we will have happier music rather than sad music.

The above setting is the IONIAN MODE. The MYXOLYDIAN MODE would be


12345678910
blowDF#ACEGBDF#A
drawEGBDF#ACEGB

And the chords would be



12345678
blowVviiiiIVviIiiiV
drawviIiiiVviiiiVvi

Although the harmonic chord progression V, IV, I, V does occur in the blows, the root chord I occurs only once, compared to the Ionian mode that occurs twice. Personally, I prefer that IONIAN MODE as the root chord is more favorable by blows.


Other scales that can be put in cyclic order are

7-NOTES DOUBLE HARMONIC MINOR

7-NOTES NEAPOLITAN SCALE

6-NOTES CELTIC MINOR

E.g. for the latter and for Celtic D minor the tunning table  would be

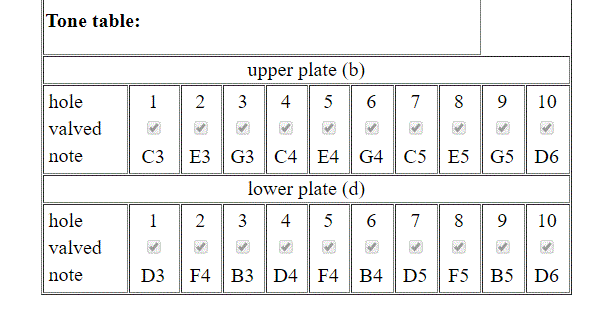

Other types of interesting tuning involve putting the melodic by 3rd sequence of chords of a diatonic scale, to a shift by a 5th higher as in the following table for D major
DIATONIC HARMONICA FOR CHORDS MAINLY
The circular tuning as we mentioned provides all the chords of the diatonic scale, in the blow and draw rows in the melodic sequence, in other words by steps of intervals of 3rd. The blow and draw rows are in chromatic relation, in other words, they differ by an interval of 2nd. This pattern can be varied. E.g. the blow row and the draw may still remain a melodic sequence of chords but now the blow and draw rows can differ by an interval of 5th (harmonic relation), as in the next table of tuning for the D major diatonic scale. Such a tuning provides also all the chords, in blow-draw pairs that are in harmonic relation (differ by an interval of 5th) but it is not intended so as to play melodies of known songs, but rather to play mainly chords in pairs of harmonic relations and improvise almost randomly and still the result is harmonic and melodic to listen , because it always plays an harpeggio of a chord.

 Probably a  happier alternative than the one in the table below would be that the draw row has lower pitch chords instead of higher. Thus for the first pair instead of blow=d4 f#4 a4 and draw=a4 c5 e5 , the blow=d4 f#4 a4 and draw=a3 c4 e4 .

In case we want also to more chords , then we should use the slide feature and design the tuning as
follows (The non-pushed slide is as befor , while by pushingte slide we create another harmonc pair of blow-draw rows but at an interval of 2nd away from the previous)

EACH PAIR OF BLOW-DRAW HAS THE NEXT PATTERNOF CHORDS



12345678
blow1M3m5M7d2m4M6m1M
draw5M7d2m4M6m1M3m5M

And the sequence of notes in intervals of semitones is

+7-3+7-4+7-3+6-3+7-4+7-3+7-4+7 etc

We could use a simplified version ofthe tuning so that at the blow row there is only one chord and at the draw row only one chord two major chords an intevalof fifth apart. E.g. F major-C major
as in the table below. Then we would have esentially a 5-tonic scale the

2-2-3-4-1 (called also greek pentatonic in post 117).

If we want to make an harmonica that plays only the minor pentatonic scale, it is really difficult. Because the two main chords of it e.g. for A minor pentatonic is Am and G major, which are relative chords. Thus te most obvious is toput then on the same blow or draw row. But what to put in the other as there is only one more note ? (A-C-E , C-E-G, the one note outside is D) The solutions is to create
 a power chord  A-D-A  which is also a root power chord. And as a power chord is strong end better be at the blow row. Thus the solution inthe table below. This harmonica plays only the minor pentatonic scale, and 3 chords Am, Cmajor at thr draw raw and A power chord at the blow row.



Also, an alternative mixture of the Richter with the circular is the next, where in the first 3 holes is as in the Richter, but the last two octaves are circular. It has again all the 7 chords of the diatonic scale.
A combined tuning of the Richter and circular, has the chords V, I at the first 3 holes and it is identical with the Richter in the first 3 holes but it has the Ionian circular tuning for the rest of the holes from 4 to 10. It has again all the 7 chords of the diatonic scale, and the melodies are played on the higher 3 octaves, while the lower bass 3 holes are left for the chords I, V, as bass or chord-harmonica.
The only advantage of the standard chromatic tuning is that it is periodic per each octave. Nevertheless, the cost of it is double
1) There is a significant loss in chord completeness
2) We must reverse blowing drawing at the last notes 7 , 1 of each octave.
I believe it is  better to sacrifice the periodicity per octave and have periodicity per 2 octaves and gain
1) Chord completeness
2) no reversing of blow-draw at the last pair of each octave.
3) Because during the minimum of 2 octaves the blow-draw properties of the notes reverse there is the possibility of breath-balance by shifting the melodic themes to the adjacent octave.

1
2
3
4
5
6
7
8
9
10
blow
1
3
5
1
3
5
7
2
4
6
draw
2
5
7
2
4
6
1
3
5
7


1
2
3
4
5
6
7
8
9
10
blow
C
E
G
C
E
G
B
D
F
A
draw
D
G
B
D
F
A
C
E
G
B

Or for 13 holes harmonica like the lucky 13 by Brendan  Power:

In general harmonicas of 13 or 14 holes could devote the first 5-6 holes for playing in pairs chords X1(blow)-X2(draw), X4(blow)-X3(draw) (or any other triad of chords from a diatonic scale e.g. X4=X1=I ,X2=V, X3=IV or X4=X1=I ,X2=IV X3=V or X4=X1=I ,X2=V, X3=ii or X4=X1=I ,X2=ii X3=V or X4=X1=vi ,X2=V, X3=IV or X1=I ,X2=iii X3=IV  or X1=I , X2=vi , x3=V or  X1=I , X2=iii , X3=V etc) and the rest of 8-7 holes for 2 full octaves with circular tuning for melodies and a full set of 7 chords. Three chords is a simple and very usual set of chords for easy improvisations.

In the next examples X1=X4.

E.g. E.g, for C major and chords X1=I, X2=V, X3=IV

1
2
3
4
5
6
7
8
9
10
11
12
13
C3
E3
G3
C4
E4
G4
D5
F5
A5
C6
E6
G6
B6
G3
B3
D4
F4
A4
C5
E5
G5
B5
D6
F6
A6
C7

Or

1
2
3
4
5
6
7
8
9
10
11
12
13
C3
E3
G3
C4
E4
G4
C5
E5
G5
B6
D6
F6
A6
G3
B3
D4
F4
A4
C5
D5
F5
A5
C6
E6
G6
B6




And  for C major and chords X1=I, X2=ii X3=V

1
2
3
4
5
6
7
8
9
10
11
12
13
C3
E3
G3
C4
E4
G4
C5
E5
G5
B6
D6
F6
A6
D3
F3
A3
G4
B4
D5
D5
F5
A5
C6
E6
G6
B6

Or   for C major and chords X1=I, X2=V X3=ii

1
2
3
4
5
6
7
8
9
10
11
12
13
C3
E3
G3
C4
E4
G4
C5
E5
G5
B6
D6
F6
A6
G3
B3
D4
D4
F4
A4
D5
F5
A5
C6
E6
G6
B6


As alternative to half chord-based and half-scaled based design ofthe tuning ofthe harmonica, we mayhave the multi-scales based design.

E.g. we may utilize half of the first part of the above harmonica to play the Blues 6-notes scale, and the rest the full diatonic scale (cyclic tuning) thus in total and for the C major scale as below

Blues+diatonic

If we consider e.g. the C the blues 6-notes scale to to be the C Eb E F# G Bb (intervals in semitones
3-1-2-1-3-2) which is a 6-notes simplification of the double harmonic minor 7-notes scale

C Eb E F F# G Bb (intervals in semitones  3-1-2-1-3-1-1), then the tui would be

1
2
3
4
5
6
7
8
9
10
11
12
13
C3
E3
G3
C4
E4
G4
C5
E5
G5
B6
D6
F6
A6
Eb3
F#3
Bb3
Eb4
F#4
Bb4
D5
F5
A5
C6
E6
G6
B6


Notice that  in the blowing row we have the chord C E G43 times initialy , while in the draw raw, the
major chord Eb F# Bb and the major chord F# Bb Eb, and the augmented chord F# Bb D.

On the other habd if we consider that the Blues scale is  the major country 6-notes scale
C D Eb E  G A C (interval structure 2-1-1-3-2-3) which is a 6-notes simplification of the 7-notes Byzantine parachromatic scale C D Eb  E  G Ab A  C   (interval structure 2-1-1-3-1-1-3) Then the tuning would be

1
2
3
4
5
6
7
8
9
10
11
12
13
C3
Eb3
G3
C4
Eb4
G4
C5
E5
G5
B6
D6
F6
A6
D3
E3
A3
D4
E4
A4
D5
F5
A5
C6
E6
G6
B6



See alo post 245 about the first 4 blue notes of diatonic scale.

3 OR 4 CHORDS HARMONICAS

The rule for 2 or 3 or 4  chords-based  tunings is that

1) horizontally either in the blow row or in the draw row are not allowed intervals other than 3rds, 4ths, 5ths for reasonsof harmony.
2) But any inversion of the chord is allowed

3) And of course you try to put as many notes of the diatonic scale as possible and with the right pitch order, so that in cyclic  sequence they are in the smalest possible intervals

The way to play such harmonicas is  better not uniform distribution of time among the notes but to spend more time in the 3 zones (either blow or draw) of 3 consecutive notes that define the pattern of the 3 or 4 chords this  3+3 +3 holes.


The role of such 3 or 4 chords tuning of harmonicas is not to play all possible songs and melodies (this is best done by the cyclic tuning) but to improvise on melodies that are accompanied only with these 3 or 4 chords AND  to play easily only these 3 or 4 chords as it is
simple to know where to find them. This combination of solo playing and chord playing when estricted to 3 or 4 chords only is best done with such tunings and not with the universal cyclic tuning than can play of course the same thing but in a quite more difficult way requiring significant skill. If the improvisation melody in such 3-4 chords harmonicas requires passing notes  that exactly missing notes from the sequence ofthe diatonic scale, then bending of notes might apply. On the other hand the missing notes define subscales of the diatonic scale that are beautiful and fitting best with the chords

If we want to set the 3 basic major chords of a diatonic scale 1M, 4M, 5M at the blow row ,together with their closest from below diminished chords (that resolve to them) that is 7dim, 3dim, 4#dim , then this is possible with a bonus of two additional chords apearing in the draw row the 3m and 6m.
Here is how this can be done for the G major diatonic scale in the next table. The 3 basic major chords are Gmajor, Cmajor Dmajor in the blow row, and the 3 diminished chords that the resolve to them at the draw row are the  F#dim, Bdim, C#dim. The bonus chordss are the Bm and Em. The total 3 octaves scale has interval structure  2-2-1-2-4-1-4-1-2-2-1-4-4-1-2-2-1-2-2

The chord positions are as in the next table



12345678
blow1M

4M

5M
draw7d

3d

4#d




If someone does not want to utilize the resolving diminshed chords and wants to remain inside the diatonic scale on way to do it is as in the next table for the C major scale




12345678
blow1M

4M

1M
draw7d

5M

7d

Notice that the main goal of such a tuning is not to play all posible songs of the C major scale (this is done by the cyclic tuning) but to play songs and improvise over the 3 major chords of the scale 1M 4M 5M.

Still another version of the 1M 4M 5M that has 3 times the 1M 2 times the 5M and one time the 4M is  the next forthe Fmajor scale

The chord positions are as in the next table


12345678
blow1M

4M

1M
draw5M

1M

5M




And still another alternative is the




12345678
blow1M

1M

4M
draw7d

5M

1M
With tuning table at  the C major the one below




If on the other hand we want to substitute the 4M chord with the minor relative 6m , then a possible tuning for the F major scale would be the next table





12345678
blow1M

6m

1M
draw7d

5M

7d



While if we want as in the blues to substitute the 4M with the lower relative chord 2m, then a possible tuning would be as in the next table for the G major scale. IN MY OPINION THE RICHTER TUNINGI SNOT THE OPTIMAL TUNING TO PLAY IMPROVISATIONS OVER THE TRIAD OF CHORDS I  ii   V (or 1M 2m 5M) . The next tuning iS CLOSER TO THE OPTIMAL FOR IMPROVISATIONS OVER THE TRIAD I  ii   V.




12345678
blow1M

2m

1M
draw7d

5M

7d



Stil another version o 1M , 2m 5M is the next for the C major scale





12345678
blow1M

5M

1M
draw7d

2m

7d


We may compare it with  the Richter tuning



12345678
blow1M

1M

1M
draw5M

2m

7d




For a minor chords triad like the iii, vi, ii, (3m , 6m, 2m) the next table of tuing is a way for the Bb diatonic scale




12345678
blow6m

2m

6m
draw3m

6m

3m


The full 3-octaves scale in semitones for te abive harmonica is 2-1-4-3-2-3-2-1-4-2-1-4-3-2-2

Notice that there in it the inverse of the Greek-Richter pentatonic 2-1-4-3-2 (see post 117 ) which is maximal harmonic, and is repeating twice in the full 3-octaves scale. Also there is the 3-2-3-2 which is 4 notes part of the standard pentatonic scale 3-2-3-2-2.





For triads like  1M 4M 3m the next table is a  way for the G major diatonic scale





12345678
blow1M

4M

1M
draw7d

3m

7d



MORE TUNIGS ARE POSSIBLE WITH 4 CHORDS LIKE THE NEXT PATTERNS




12345678
blow4M

5M

4M
draw1M

2m

1M






12345678
blow4M

5M

4M
draw3m

1M

3m





12345678
blow1M

4M

1M
draw7d

3m

7d




12345678
blow4M

5M

4M
draw1M

6m

1M



THE OBVIOUS ADVANTAGES OF THE IONIAN CIRCULAT TUNING ARE

0) All types of music can be played, as with the piano. Actually, this tuning occurs in Zamponia panflutes with double rows of tubes.

1) The blow upper row is alternating major-minor 3rds only. Any 3 consecutive notes are a chord of the diatonic scale

2) The draw lower row is alternating major-minor 3rds only. Any 3 consecutive notes are a chord of the diatonic scale

3) The vertical intervals ( draw-next hole blow),  are only intervals of  2nds. You know where to find each note, not because you have played the tuning 50,000 times but because they are in the natural order of their pitch.

4) All the chords of the steps of the diatonic scale  1, 2,3,4,5,6, 7, are playable horizontally. No chord is missing.

5) All the 3 major chords in harmony chord progression occur in the blows

6) All 3 minor chords in harmonic progression occur in the draws.

7) Because the periodicity is not per one octave but per two octaves, all the notes in the first two octaves occur, either as blows or as draws which not only give a balance in the breath but also allows more bends to occur as draw-bends which is easier.

8) The Ionian mode of this tuning seems to be more favored by the blows compared t the Myxoliodian mode.

9) A complete balance of drow and blow breaths can be achieved with the chromatic technology, where instead of adding sharps or flats we interchange drow and blow property of the same note (as in the example table below)

10) We may enhance the octaves range by the chromatic harmonica  technology, where instead of adding sharps or flats we jump to the next octave whenever we push the button-lever (as in the example table below)

11) The same cyclic tuning in the Aeolian mode can give tunings with the harmonic minor or also the double harmonic minor scale.(see example below)

12) In the case of chromatic harmonica, the optimal tuning for chord completeness is as in the example below, which allows for chords like 3major instead of only 3minor and 7major7 instead of only  7dimished when pushing the slide.  In other words besides the full spectrum of 7 chords of the diatonic scale,  I ii  iii IV V vi  vii or 1M, 2m , 3m, 4M 5M ,6m ,
7dim , we also have, after utilizing the lever-slide at the steps 3 and 7 , also the chords 3M and 7M. which is a very common requirement in pop, jazz , latin and other folk , or classical music, which comes from modulating from the natural minor to the harmonic minor and double  harmonic minor.


HAPPILY THOUGH MODERN MANUFACTURES OF HARMONICAS LIKE HOEHNER (http://www.tuning-designer.com/)

OR SEIDEL(https://www.seydel1847.de/epages/Seydel1847.sf/en_GB/?ObjectPath=/Shops/Seydel/Categories/Configurator/Config_Harmonikas )

HAVE ONLINE TUNING DESIGNER TOOLS SO AS TO ORDER YOUR HARMONICA WITH ANY ORDER OF NOTES YOU WANT.

And indeed I did so ordered and use harmonicas with the above improvement of tuning which are by far easier and more meaningful to play!


Similarly an Harmonic minor tuning would in the same rules , so as to have all the chords of the scale.

So e.g. an A harmonic minor such harmonica would have tuning




and not in the standard way that has few only chords!




HEXATONIC SCALES FOR THE HARMONICA

MOST OF THE HEXATONIC TUNINGS IN THIS DISCUSSION HAVE A SINGLE CHORD AT THE BLOW ROW AND ANOTHER SINGLE CHORD AT THE DRAW ROW.
ACTUALLY ANY TWO SUCCESIVE CHORDS IN THE DIATONIC SCALE (E.G. 7DIM-1M, OR 4M-5M, 3M-4M, 5M-6m , 6m-7dim) CAN BE USED FOR AN APPROPRIATE  TWO-CHORD HEXATONIC TUNING HARMONICA.

THUS WE WILL HAVE THE NEXT 6 TYPES OF CHORD PAIRS IN THE HARMONICA WHICH ARE CHORDS IN DIATONIC CHROMATIC RELATION

M=MAJOR m=MIOR d=DIMINSIHED
n=number of semitones that the roots are apart
IONIAN/MYXOLYDIAN: M2m
DORIAN: m2m
FRYGIAN: m1M
LYDIAN: M2M
AEOLIAN: m2d
LOCRIAN:d1M

But we also present many other non-diatonic chromatic pairs that involve also augmented chords and a re met in the harmonic minor (which apears also in the overtone sequence)  double harmonic minor, melodic minor (which apears also in the overtone sequence)  etc

E.G.
m2M (Erik Satie hexatonic of the harmonic minor heptatonic)
M2dim (hexatonic from melodic minor)
m1m
M3m
M1M (Hexatonic from the harmonic minor)
aug2M
dim1m
m6m
aug3aug
dim1aug
etc



I  have ordered and play all of the next chromatic hexatonic scales of  the harmonic minor scale and invererse harmonic minor scale (Blues 7-tonic) and when I will find time I  will upload sound files of them

ALL OF THE HEXATONIC TUNING  IN THIS DISCUSSION HAVE A SINGLE CHORD AT THE BLOW ROW AND ANOTHER SINGLE CHORD AT THE DRAW ROW.

ACTUALLY ANY TWO SUCCESIVE CHORDS IN THE DIATONIC SCALE (E.G. 7DIM-1M, OR 4M-5M, 3M-4M, 5M-6m , 6m-7dim) CAN BE USED FOR AN APPROPRIATE  TWO-CHORD HEXATONIC TUNING HARMONICA.

THUS WE WILL HAVE THE NEXT 6 TYPES OF CHORD PAIRS IN THE HARMONICA WHICH ARE CHORDS IN DIATONIC CHROMATIC RELATION (the roots are separated by an interval of 2nd)

e.g. if the 7-notes diatonicscale is the C-D-E-F-G-A-B-C in semitones 2-2-1-2-2-2-1  then

M=MAJOR m=MIOR d=DIMINSIHED

1,2,3 etc =number of semitones that the roots are apart

1) IONIAN/MYXOLYDIAN: M2m       C-D-E-F-G-A-C in semitones 2-2-1-2-2-3 and over the Blow-draw 2 chords Cmajor Dminor
                                             or  G-A-B-C-D-E-G and over the Blow-Draw 2 chords Gmajor Aminor (also called Celtic minor hexatonic)

2) DORIAN: m2m                D-E-F-G-A-B-D in semitones 2-1-2-2-2-3  and over the Blow-Draw 2 chords Dminor-Eminor (also called Celtic major hexatonic)

3) FRYGIAN: m1M             E-F-G-A-B-C-E in semitones 1-2-2-2-1-4  and over the Blow-Draw 2 chords Fmajor-Eminor (also a hexatonic version of the
                                              akebono 5-notes scale)

4) LYDIAN: M2M                     F-G-A-B-C-D-F  in semitones 2-2-2-1-2-3  and over the Blow-Draw 2 chords Fmajor-Gmajor (also called an alternative
                                             version of Celtic major scale)

5) AEOLIAN: m2d                  A-B-C-D-E-F-A  in semitones 2-1-2-2-1-4  and over the Blow-Draw 2 chords Aminor-Bdim

6) LOCRIAN:d1M                     B-C-D-E-F-G-B  in semitones 1-2-2-1-2-4  and over the Blow-Draw 2 chords Bdim-Cmajor (also called enharmonic major)

But we also present many other non-diatonic chromatic pairs that involve also augmented chords and a re met in the harmonic minor (which apears also in the overtone sequence)  double harmonic minor, melodic minor (which apears also in the overtone sequence)  etc

E.G.
m2M (Erik Satie hexatonic of the harmonic minor heptatonic)
M2dim (hexatonic from melodic minor)
m1m
M3m
M1M (Hexatonic from the harmonic minor)
aug2M
dim1m
m6m
aug3aug
dim1aug
etc

In the future I will upload sound files that show how such harmonicas sound as I have more  than 30 different such hexatonic scales 2-chords harmonicas  with different emotional moods. With a simple 2-chord backtrack they are an excelelnt simple way to learn and practice improvisations of any type of emotional mood.



In ancient Greece according to Aristoxenos, there were 3 musical gendres , the diatonic , the chromatic and enharmonic which were also tetrachords  (total length an interval of 4th)  and pentachords (total legth an interval of 5th and consisting from an initial or final tone and a tetrachord as before) and by combing a tetrachord with a pentachord they got various   7-notes scales inside an octave. In other words the 7-notes scale was of the form Tetrachord1+2+tetrachord2 , in which case it was called two "divorced" tercahords or Tetrachord1+tetrachord2+2 in which case it was called two adjoint tetrachords.  1) the Diatonic  was balanced feelings (that eventually after more than 1 thousand years resulted to the 7-notes diatonic scale, and a simplified rounding of their tetrcahords to a single one was the 2-2-1 and most probably all permutations of it )  the 2) Chromatic  was sad feelings (that eventually after more than 1 thousand years resulted to the 7-notes harmonic minor and double harmonic minor scales, blues scale etc , And a simplified rounding of their tetrachords to a single one was the 3-1-1 nd most probably all permutations of it  ) and 3) the enharmonic  was happy feelings (used major 3rd intervals and a simplified rounding to a single one was the 4-(1/2)-(1/2)) and most probably all permutations of it )  and has many similarities with the Japanese 5-notes scales like the Akebono with interval structure 4 - 2 - 1 - 4 - 1 e.g. at the mode 2-1-4-1-4  e.g. A B C E F A. (See e.g. the video https://www.youtube.com/watch?v=vv7CO-nVFj8 )


DIATONIC GENDRE: CIRCULAR TUNING FOR THE 6-NOTES CELTIC MINOR SCALE

We may also notice that the 6-notes scales are favored for a harmonica, as the periodicity in the circular tuning is per octave and not per 2 octaves as in 7-notes scales. A good example is the Celtic minor 6-notes scale ( in semitones 2-2-3-2-2-1). This scale is used also for the hundpans   and hang drums.  The example is in the next table of tunning for the case of D root. The blow row is only the chord I and the draw row only the chord ii. The Celtic minor is the maximal harmonic 6-notes scale, in the sense that it is a 6-notes scale with the maximum number of standard chords. In the same way that a 7-notes diatonic scale is a maximal harmonic 7-notes scale in the sense that it is a 7-notes scale with a maximum number of standard chords (see the article https://simplerguitarlearning.blogspot.com/2018/08/117-small-7-notes-diatonic-scale-and.html  )

 An example is  in the next  table of tunning for the case of D root.
MOST OF THE HEXATONIC TUNINGS IN THIS DISCUSSION HAVE A SINGLE CHORD AT THE BLOW ROW AND ANOTHER SINGLE CHORD AT THE DRAW ROW.
ACTUALLY ANY TWO SUCCESIVE CHORDS IN THE DIATONIC SCALE (E.G. 7DIM-1M, OR 4M-5M, 3M-4M, 5M-6m , 6m-7dim) CAN BE USED FOR AN APPROPRIATE  TWO-CHORD HEXATONIC TUNING HARMONICA.

Stil another mode of it is the next where at blowing is the major chord and at draw is the minor. In the example table below we are in t he G major scale.




On the other hand the sequence 2-3-2-2-2-1 (e.g.  C-D-F-G-A-B) IS NOT A CYCLIC PERMUTATION of the 2-2-3-2-2-1 or 1-2-2-3-2-2 or 3-2-2-1-2-2 and it should be  considered a different scale than the Celtic 6-notes (minor) not a different mode of it. It could be  called maybe Celtic 6-notes major, because both the blow-row chord and the draw-row chord are major chords!  MOST OF THE HEXATONIC TUNINGS IN THIS DISCUSSION HAVE A SINGLE CHORD AT THE BLOW ROW AND ANOTHER SINGLE CHORD AT THE DRAW ROW. Below is the table of such a tuning for a harmonica starting from D, and not C but with the same interval structure  2-3-2-2-2-1. And there is alo the inverse of this scale with interval structure 2-1-2-2-2-3 E.g. again derivable from  the 7-notes C major mode of the diatonic scale , but now we omit C. Thus D-E-F-G-A-B-D . I believe the previous discussion  completely clarifies the distiction between a scale and its modes.

The Byzantine culture absorbed the musical culture of Ancient Greece, that used mainly not 7-notes scales but 4 and 5 notes scales of total length an interval of 4th or 5th (called tetrachorda). The names of the modes Ionian, Dorian, Phrygian , Lydian etc were originally different 7-notes scales in the Byzantine empire relevant to the places in Greece that were mostly used, that when the European culture after Bach absorbed them in the 12-notes equal tempered system, thet altered them, and they ended to become  different modes of the one diatonic scale and not different scales.
The inverse of the Celtic major, which is the 2-1-2-2-2-3 has one minor chord at the Blow row and one minor at the draw row. Here the tuning table at the G major scale as 2m-3m




Hexatonic scales as the above at various modes of them are used not only at modern handpans but also at chinese Bahu flutes.



CHROMATIC GENDRE: BLUES - COUNTRY 6-NOTES MAJOR SCALE AND THE 7-NOTES BYZANTINE PARACHROMATIC SCALE.


ALL 7 HEXATONIC SCALES FROM THE 7 MODES OF THE 7-NOTES BLUES SCALE (OR INVERSE HARMONIC MINOR SCALE)

Some og these hexatonic scales of the inverse harmonic minor are also hexatonic scales of the diatonic scale or the melodic minor or the double harmonic minor!

7-NOTES BLUES SCALE C-D-Eb-F-Gb-A-Bb  (or in semitones 2-1-2-1-3-1-2) also inverse harmonic minor scale, with chords

Cdim, Dminor, Ebminor, FMajor, Gb augmented , A diminished , Bb major

4.1) 1st mode C-D-Eb-F-Gb-A-C    (or in semitones 2-1-2-1-3-3)  based on the 2 chords Cdim-Dm

4.2) 2nd mode  D-Eb-F-Gb-A-Bb-D   (or in semitones 1-2-1-3-1-4)  based on the 2 chords
Dmin-Ebmin (hexatonic caval double harmonic minor too)

4.3) 3rd mode Eb-F-Gb-A-Bb-C    (or in semitones 2-1-3-1-2-3)  based on the 2 chords Ebmin-Fmajor (Erik Satie hexatonic scale)

4.4) 4th mode F-Gb-A-Bb -C-D-F    (or in semitones 1-3-1-2-2-3)  based on the 2 chords
Fmajor-Gbaug ( inverse hexatonic neapolitan )

4.5) 5th mode  Gb-A-Bb-C-D-Eb-Gb   (or in semitones 3-1-2-2-1-3)  based on the 2 chords
Gbaug-Adim

4.6) 6th mode A-Bb-C-D-Eb-F-A    (or in semitones 1-2-2-1-2-4)  based on the 2 chords Adim-Bbmajor (hexatonic enharmonic major, or hexatonic Locrian mode)

4.7) 7th mode  Bb-C-D-Eb-F-Gb-Bb   (or in semitones 2-2-1-2-1-4)  based on the 2 chords
Bbmajor-Cdim (Hexatonic melodic minor too)


ALL 7 HEXATONIC SCALES FROM THE 7 MODES OF THE 7-NOTES HARMONIC MINOR SCALE .

Some og these hexatonic scales of the inverse harmonic minor are also hexatonic scales of the diatonic scale or the melodic minor or the double harmonic minor!

7-NOTES HARMONIC MINOR  SCALE A-B-C-D-E-F-G#-A  (or in semitones 2-1-2-2-1-3-1) with chords                               Aminor-Bdim-Caug-Dminor-EMajor-FMajor-G#dim-Aminor

4.1) 1st mode A-B-C-D-E-F-A   in semitones 2-1-2-2-1-4  based on the 2 chords
Amin-Bdim  (Aelian diatonic too)

4.2) 2nd mode B-C-D-E-F-G#-B  in semitones 1-2-2-1-3-3  based on the 2 chords Bdim-Caug

4.3) 3rd mode C-D-E-F-G#-A -C in semitones 2-2-1-3-1-3  based on the 2 chords Caug-Dminor (Neapolitan Hexatonic too)

4.4) 4th mode  D-E-F-G#-A-B-D  in semitones 2-1-3-1-2-3   based on the 2 chords Dminor-Emajor (Erik Satie hexatonic)

4.5) 5th mode  E-F-G#-A-B-C-E  in semitones 1-3-1-2-1-4  based on the 2 chords
Emajor-Fmajor

4.6) 6th mode F-G#-A-B-C-D-E-F   in semitones 3-1-2-1-2-3  based on the 2 chords
Fmajor-G#dim

4.7) 7th mode   in semitones 1-2-1-2-2-4  based on the 2 chords
G#dim-Amin  (hexatonic enharmonic minor)

FROM THE 7-NOTES MELODIC MINOR THE HEXATONIC SUBSCALES NOT COVERED BY THE PREVIOUS ARE THE NEXT

E.g. let the 7-notes melodic minor A-B-C-D-E-F#-G#-A in semitones 2-1-2-2-2-2-1 and chords
m-m-aug-M-M-m-d the next are additional hexatonics

C-D-E-F#-G#-A-B-D in semitones 2-2-2-2-1-3 and 2 chords Caug-Dmajor

B-C-D-E-F#-G#-B  in semitones 1-2-2-2-2-3 and 2 chords Bminor-Caug

F-G#-A-B-C-D-F#  in semitones 2-1-2-1-2-4 and 2 chords F#minor-G#dim



According to the wikipedia (https://en.wikipedia.org/wiki/Blues_scale), a 6-notes version of the major country-blues  scale is e.g. the
C, D, D♯/E♭, E, G, A, with interval structure 2-1-1-3-2-3. Or if we prefer a root at D, then  D-E-F-F#-A-B-D. Below is the table for a harmonica with such a tuning.

On the other hand historically the Byzantine emptire was utilizing many 7-notes scales, not possible to include in the Bach equal tempered 12-notes chromatic scale. But 3 chromatic sacles of them are possible more or less to include, Two of the chromatic such scales are the harmonic minor (e.g. from the A natural minor we derive the harmonic minor by giving a sharp at G, thus  A B C D E F G# A , with interval structure 2-1-2-2-1-3-1) and the double harmonic minor (an additional sharp to d  thus  A B C D# E F G# A ,  with interval structure 2-1-3-1-1-3-1). They  where used mainly in religious hymns in the Churchs. But the 3rd such chromatic scale was used mainly in the Emperors palace and other cosmic events and was called parachromatic (see e.g.  http://www.huygens-fokker.org/docs/modename.html    http://www.huygens-fokker.org/scala/ ). The Byzantine parachromatic scale is called also inverse Persian or  Purvi Theta scale. The part 2-1-1-3 is also known as samba pentachord in arabian culture, while the part 1-1-3 is known since ancient Greece time as the tonal tetrachord of the chromatic family. The interval structure of  the parachromatic Byzantine scale is 2-1-1-3-1-1-3 . Thus starting from D , it would be D, E, F, Gb ,A, Bb, B , D We may observe that it is a 7-notes version of the Blues scale, and a tuning table for a harmonicas at the D4- major 6-notes Blues-country scale and a D4- parachromatic 7-notes scales are given below. (see also article https://simplerguitarlearning.blogspot.com/2019/06/235-parachromatic-byzantine-overtone.html )





CHROMATIC GENDRE: MORE  6-NOTES SCALES THAT ARE  BEAUTIFUL FOR HARMONICAS. COMBINING PARTS OF THE PENTATONIC  WITH CHROMATIC PARTS.

MOST OF THE HEXATONIC TUNINGS IN THIS DISCUSSION HAVE A SINGLE CHORD AT THE BLOW ROW AND ANOTHER SINGLE CHORD AT THE DRAW ROW.
ACTUALLY ANY TWO SUCCESIVE CHORDS IN THE DIATONIC SCALE (E.G. 7DIM-1M, OR 4M-5M, 3M-4M, 5M-6m , 6m-7dim) CAN BE USED FOR AN APPROPRIATE  TWO-CHORD HEXATONIC TUNING HARMONICA.

We noticed in the previous post that the Blues-country scale with interval structure 2-1-1-3-2-3, (and any cyclic permutation of it, is still the same scale although a different mode of it) sounds partially as the pentatonic scale 2-2-3-2-3 and partially with chromatic part 1-1-3 which was identified as the ancient Greek tonal tetrachord of the chromatic family. By writting the Blues scale in a different 5th mode of it (cyclic permutation) makes it more clear: 2-3-2-1-1-3 . The 2-3-2 part is inherited from the pentatonic scale 2-2-3-2-3 and the 1-1-3  is the ancient Greel tonal tetrachord of the chromatic family (that exist also in the Byzantine emperor parachromatic 7-notes scale). Such scales may be obviously be used in Gypsy jazz, but in ordinary western jazz too.

Other parts of the pentatonic sacle are also the 2-2-3,

1) Thus we may discover the next hexatonic scale that should sound similarly 2-2-3-1-1-3 and it is not a different mode of the Blues-country scale. In the tables below we show this tuning , when starting from the root D .  Thus D-E-F#-A-Bb-B-D. It is still a 6-notes version of the Byzantine parachromatic scale of the previous post but different from the Blues-country scale, still sounding in a similar way.

2) There are the invesres of course of the previous hexatonic scales a) the inverse ofthe Blues-country in the mode 2-3-2-1-1-3, which is the 2-3-2-3-1-1 (after inverting and taking a cyclic permutation of it). b) The inverse of the  2-2-3-1-1-3, which is the 3-2-2-1-1-3 ((after inverting and taking a cyclic permutation of it). We write them always so as to separate the pentatonic part, and the chromatic part.

3) If we combine now the pentatonic part 2-3-2 (of the Blues scale) with the chromatic part 1-3-1 (which exists in the harmonic minor) we get a hexatonic scale 2-3-2-1-3-1, that sounds partially as pentatonic and partially as chromatic (harmonic minor). It is a 6-notes version of the harmonic minor scale,perfect for harmonicas that favor in the cyclic tuningthe heaxtonic scales. Some times it is also called the Erik Satie hexatonic scale. (See e.g. the video https://www.youtube.com/watch?v=okU96j6ThIM&t=8s )We give below the tuning table when starting from the root D. And of course there is the inverse of it again which is not a different mode of it. D-E-G-A-Bb-C#-D.

4) If we combine now the pentatonic scale part 3-2-2  with the chromatic part 1-3-1 (which exists in the harmonic minor) we get a hexatonic scale
3-2-2-1-3-1, or at a different mode as  2-1-3-1-3-2  that sounds partially as pentatonic and partially as chromatic (harmonic minor). It is a 6-notes version of the Neapolitan scale 2-1-3-1-1-2-2 (e.g. from D it would be D-E-F-G#-A-Bb-C-D), perfect for harmonicas that favor in the cyclic tuning  the hexatonic scales. We give below the tuning table when starting from the roor D thus D-E-F-G#-A-C-D , with interval structure at the mode 2-1-3-1-3-2 .And of course there is the inverse of it again which is not a different mode of it.


5) If we start with the double harmonic minor, e.g. from A, it is A-B-C-D#-E-F-G#-A  which has interval structure  2-1-3-1-1-3-1 , we may derive an appropriate hexatonic which contains a part ofthe pentatonic scale ,which here is the 3-2-3. The resulting scale  is the 3-2-3-1-2-1, or in a different mode the 2-1-3-2-3-1. Starting from the root D it is D-E-F-G#-Bb-C#-D.At Blow it is Bb major and at Draw it is C#minor
The mode 1-2-1-3-2-3 e.g. F# G ABb C# D# would give at the Blow row a single minor chord F# and at the Drow row  a major  chord D# .

There are also similar hexatonic scales that are  symmetric like  3-2-1-3-2-1 or 3-1-2-3-1-2 or 1-2-3-1-2-3. The latter when placed to an harmonica tuning it gives at the blow row a single chord and at the draw row again a single chord E.g. A-Bb-C-D#-E-F#-A.







ENHARMONIC GENDRE: MORE HEXATONIC SCALES FOR HARMONICAS : UTILISING AKEBONO 5-NOTES SCALE


MOST OF THE HEXATONIC TUNINGS IN THIS DISCUSSION HAVE A SINGLE CHORD AT THE BLOW ROW AND ANOTHER SINGLE CHORD AT THE DRAW ROW.
ACTUALLY ANY TWO SUCCESIVE CHORDS IN THE DIATONIC SCALE (E.G. 7DIM-1M, OR 4M-5M, 3M-4M, 5M-6m , 6m-7dim) CAN BE USED FOR AN APPROPRIATE  TWO-CHORD HEXATONIC TUNING HARMONICA.


In ancient Greece according to Aristoxenos, there were 3 musical gendres , the diatonic , the chromatic and enharmonic which were also tetrachords  (total length an interval of 4th)  and pentachords (total legth an interval of 5th and consisting from an initial or final tone and a tetrachord as before) and by combing a tetrachord with a pentachord they got various   7-notes scales inside an octave . In other words the 7-notes scale was of the form Tetrachord1+2+tetrachord2 , in which case it was called two "divorced" tercahords or Tetrachord1+tetrachord2+2 in which case it was called two adjoint tetrachords.  1) the Diatonic  was balanced feelings (that eventually after more than 1 thousand years resulted to the 7-notes diatonic scale, and a simplified rounding of their tetrcahords to a single one was the 2-2-1 and most probably all permutations of it )  the 2) Chromatic  was sad feelings (that eventually after more than 1 thousand years resulted to the 7-notes harmonic minor and double harmonic minor scales, blues scale etc , And a simplified rounding of their tetrachords to a single one was the 3-1-1 nd most probably all permutations of it  ) and 3) the enharmonic  was happy feelings (all possible major 3rd intervals were usually more than all possible minor 3rd intervals and a simplified rounding to a single one was the 4-(1/2)-(1/2)) and most probably all permutations of it )  and has many similarities with the Japanese 5-notes scales like the Akebono with interval structure 4 - 2 - 1 - 4 - 1 e.g. at the mode 2-1-4-1-4  e.g. A B C E F A. (See e.g. the video https://www.youtube.com/watch?v=vv7CO-nVFj8 )

One natural way to derive a hexatonic scale is to require that part ofthe hexatonic scale  is either in the pentatonic or in the 7-notes diatonic. Thus here the two versions 2-2-2-1-4-1 and 2-2-2-4-1-1 may be obtained. In notes relevant to the D major scale  at appropriate modes are 1) 4-1-2-2-2-1 as D-F#-G-A-B-C#-D and 2) 1-2-2-2-4-1 as A-B-C#-F-F#-G-A
Below are tables of tuning for such harmonicas. The first of them has been called in post 204 the Cretan hexatonic

Still one more hexatonic with rather familiar sound is the 2-2-1-2-4-1, which can  be obtained my omiting a note from the 7-notes diatonic scale E.g. C D E F G  B C. For the D major scale it would be D E F# G A C# D.  Its table is shownbelow when starting from C3. It is an harmonic not to play all possible songs in it (such would be  a cyclic tuning one) but to play melodies that are easily accompanied by two only chords the I=1Major, and viidim=7diminished (which sounds like the V7) as all the blow row is the 1major and all the draw ros is the 7diminshed.
THE CASE OF 2-2-1-2-4-1 IS OF EXTREME IMPORTANCE AS IT PRODUCES HAPPY MUSIC
E.G. FOR C MAJOR IT IS C MAJOR-Bdiminished AND IN NOTES C-D-E-F-G-B-C AS IN THE TABLE BELOW.

And there is also the very beatiful  2-2-1-4-2-1 that when tuned at an harmonic gives the Blow-row a minor chord and the draw-row a dimished chord.
Similarly the 2-2-1-2-1-4 or D E F#  G A Bb D which can be considered a hexatonic version of the G melodic minor.

Other beatiful such scales that combine the Chromatic with the enharmonic gendre are the
2-1-4-1-3-1. The Blow-row is a major chord and the draw-row another major chord one semitone apart. We give the tuning table below when starting from G3 as Hexatonic _enharmonic_harmonic_minor.


More examples are symmetric hexatonic scales like the 1-1-4-1-1-4, or non-cyclic permutations of them like 4-1-4-1-1-1, and 4-4-1-1-1-1.

I  have not checked exactly some similar ideas of Brendan Power  for Chinese or Japanese-like tunings of the harmonica, but maybe some tunings might coincide.







Another case is the pair of chords Blow=6m draw=5#dim E.g. in the G minor it is

Blow=G Bb  D and Draw=A C F#, thus the hexatonic of the enharmonic gendre 2-1-2-2-4-1.

G A Bb C D F#   with the tuning table below





More such scales are the
 4-3-1-2-1-1
 4-3-1-1-2-1

 3-4-1-1-2-1
3-4-1-2-1-1

And even more of them in post 225.


CHROMATIC TUNING

The standard chromatic tuning e.g. for C major scale is

Again this tuning is not complete in all chords of the diatonic scale.
The only advantage of this tuning is that it is periodic per each octave. Nevertheless the costs of itis double
1) There is significant loss in chord completness
2) We must reverse blowing drawng at the last notes 7 , 1 of each octave.

I believe it is  better to sucrifice the periodicity per octave and have periodicity per 2octaves and gain
1) Chord completness
2) no reversing of blow-draw at the last pair of each octave.
3) Because during the minimum of 2 octaves the blow-draw properties of the notes reversem there is the possibility of breath-balance by shifting the melodic themes to the adjacent octave.

The next chromatic tuning does have all the chords of the diatonic scale. Furthermore, by not producing sharps for notes 3 and 7 (E and B) which is not necessary for the completeness of chromatic notes, we have additional advantages in the chords.

The strong advantage of harmonica is not single notes but pairs of notes or chords, therefore we cannot ignore the very important issue of chord-completeness in a harmonica that can play solo too. In the case of chromatic harmonica, the optimal tuning for chord completeness is the next, which allows for chords like 3major instead of only 3minor and 7major7 instead of only  7dimished when pushing the slide.  In other words besides the full spectrum of 7 chords of the diatonic scale,
1M, 2m , 3m, 4M 5M ,6m , 7dim , we also have, after utilizing the lever at the steps 3 and 7 , also the chords 3M and 7M. which is a very common requirement in pop, jazz , latin and other folk , or classical music, which comes from modulating from the natural minor to the harmonic minor and double  harmonic minor.


Curiously enough the scale that is produced by sliding the lever is the dorian mode of the B major scale and not the ionian mode of the C# major scale which is very convenient too as we get two quite often used scales and also a chromatic harmonica at the same instrument

FURTHERMORE a further idea to balance blow and draw breath is to take any tuning diatonic harmonica and make it with a lever with the same exactly notes but pushing the button changes the blow property of a note to a draw one of the same note and vice versa. Here is the example of a C major diatonic harmonica that by utilizing the designer of chromatic one we remain in the same notes of the diatonic but we use the lever of the chromatic harmonica to switch from the blow property of a note to a draw property of the same note and vice versa. Such an harmonic can be played with only blows or only draws too by using the lever. And of course it transfers draw to blow bends and vice versa




And of course we may have a use of the button-lever not for chromatic version of the harmonica, but for jumping in the next octave in a diatonic harmonica

E.g. for a D major diatonic harmonica (cyclic with all the chords) a design of such a button would be the next


HARMONICAS WITH STATIC MOUTHPIECE CONNECTED WITH A FLEXIBLE TUBING WITH SLIDING BLOWING DEVICE MOVED BY THE HAND?

The history of harmonica writes that it was inspired by the Chinese instrument Sheng, which is like a wooden panflute but with one only blowing pipe that distributes the air to many pipes. (e.g. https://en.wikipedia.org/wiki/Sheng_(instrument) ) Actually this may have lead the chinese to make an interesting panflute with a single flexible blowing pipe (as in bag pipes) and a sliding mouthpiece on the row of tubes like in the next link. (e.g.https://www.aliexpress.com/item/3283820 ... b201603_53)
Now this indeed makes the panflute 66% easier and faster to play as I have tried and tested. It is easier to move and slide the blowing-mouthpiece across the tubes, than to move the whole of the panflute across your mouth.
IS THERE A SIMILAR WAY TO APPLY AND PLAY THE HARMONICA?
I believe there is given a smart design and crafting (as many by Brendan Power) . Since harmonicas are good in playing chords , obviously the static mouthpiece must be of at least 3 holes (but not more than 4 holes), and allowing all the techniques , of tongue blocking , lip-blocking , bending, overblowing etc. Then this static mouthpiece will have distribute the air with 3 separate flexible pipes (possibly within one larger) to a sliding blowing device with at least 3 holes again, sliding on the many holes of an harmonica. The sliding blowing device will be moved fast with the hands. It is expected that with such an harmonica some advantages would be
1) You can play faster and learn it faster
2) you can play easier and more accurately, because you see the position of sliding blowing device across the holes of the harmonica
3) The mouth action is simpler and easier , static ,as there is no friction between the harmonica holes and the mouth.
Some disadvantages would be
1) New methods of holding the harmonica and sliding the blowing device must be created.
2) New methods of creating tremolo with the two palms , must be created.
It seems that the idea of sliding blowing device is not new as e.g. it occurs in the ChengGong harmonica (https://www.patmissin.com/gallery/gallery03.html), but the main idea of the ChengGong harmonica is entirely different.
